TB6600 Stepper Motor Driver

OurTB6600 Stepper Motor Driveris an easy-to-use professional stepper motor driver, which could control a two-phase stepping motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. TB6600 stepper motor driver has a wide range power input 9~42VDC power supply. It is able to output 4A peak current, which is enough for the most of stepper motors.

Features:

• For two-phase stepper motors
• Arduino compatible
• Able to output a 4A peak current

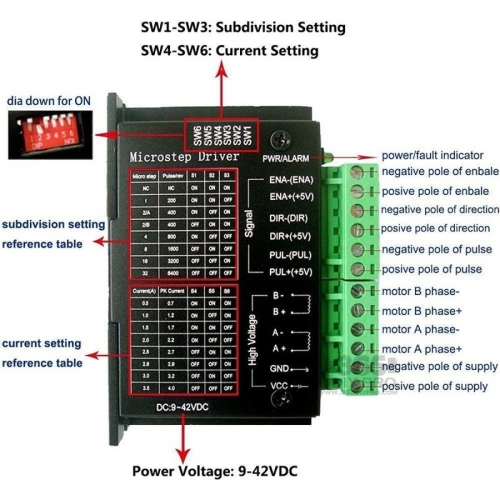

• 8 kinds of current control from 0.5A to 3.5A and7 kinds of micro steps
• Power input from 9 to 42VDC

Note:

This driver is the upgraded version TB6600, heightening segment to 32 subdivision, suitable for high segmentation applications.For step motor: 42, 57, 86 type 2 phase 4 phase (4 / 6 / 8 line)
